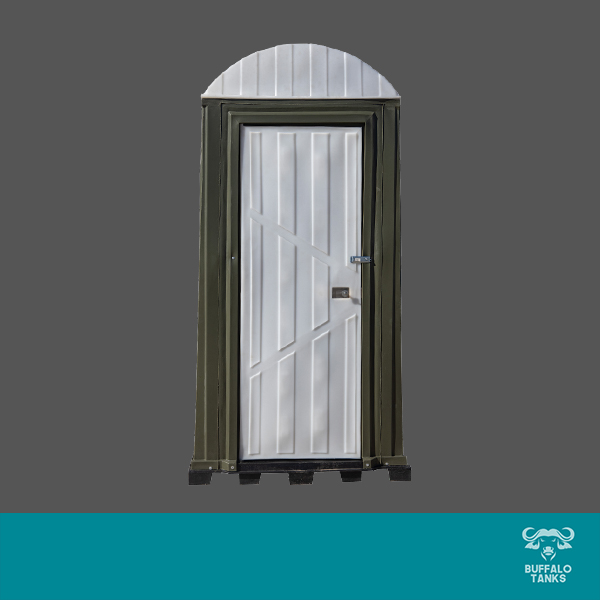

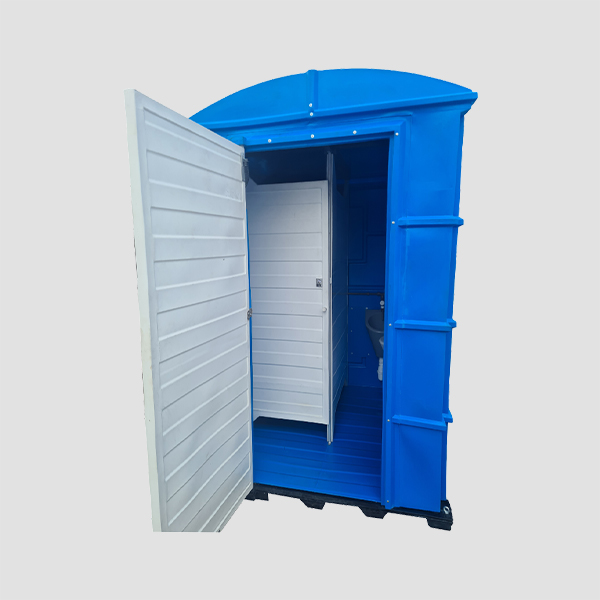

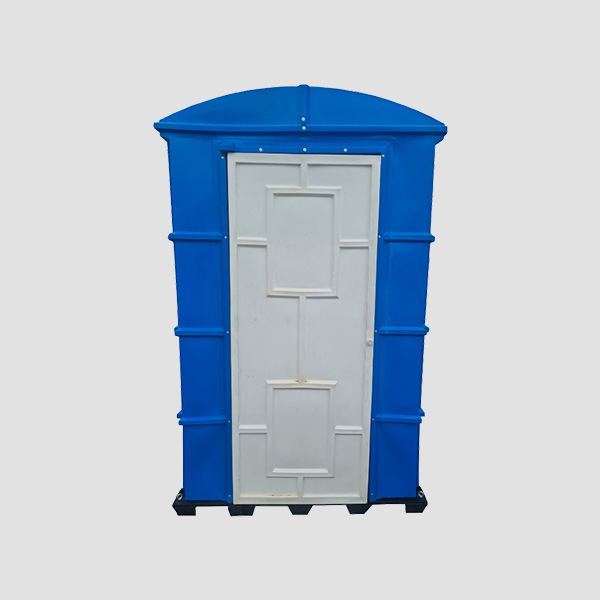

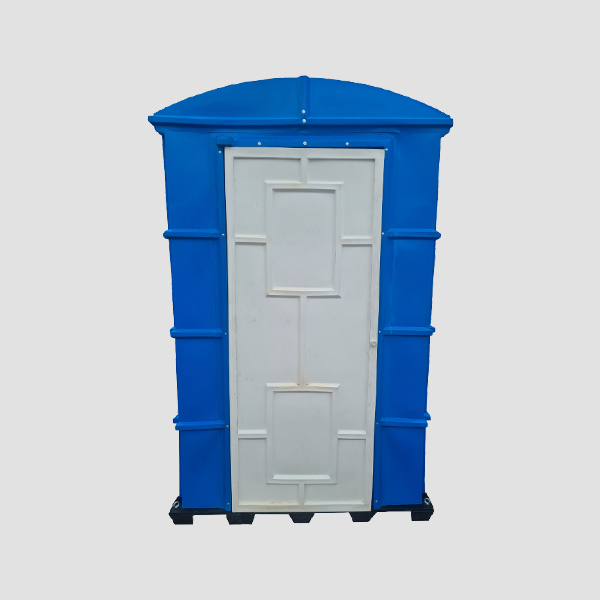

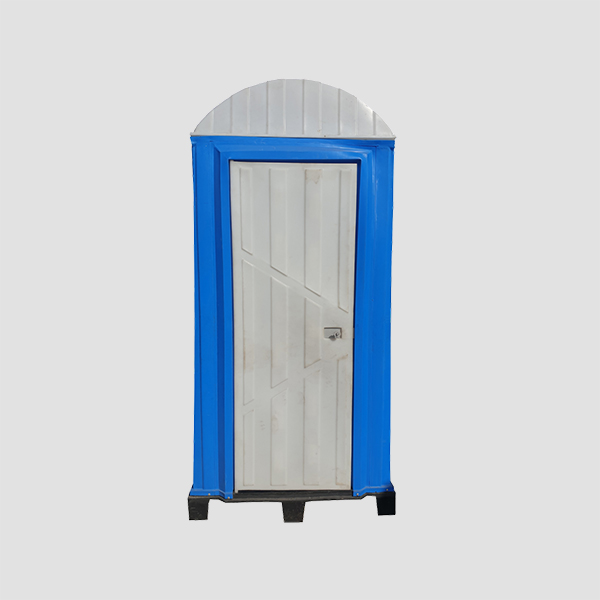

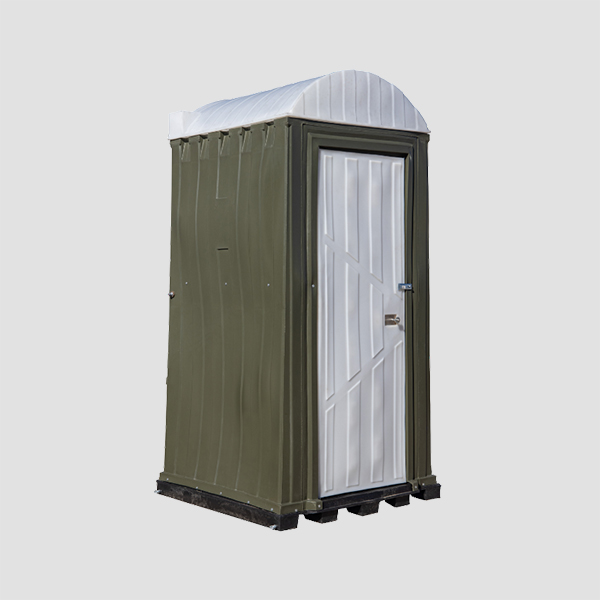

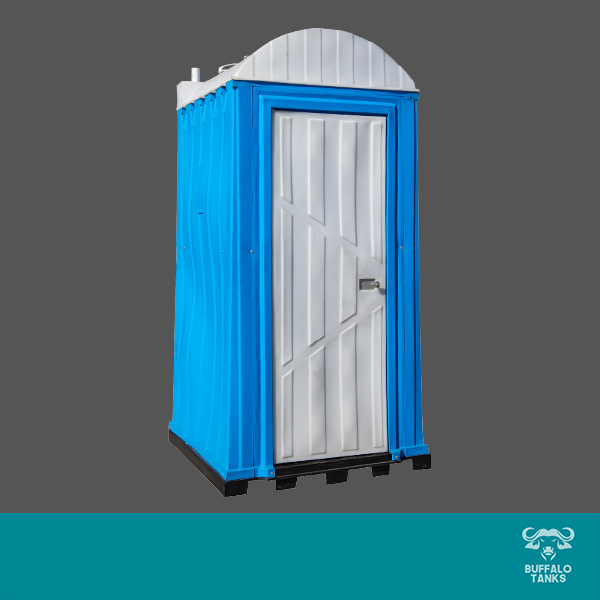

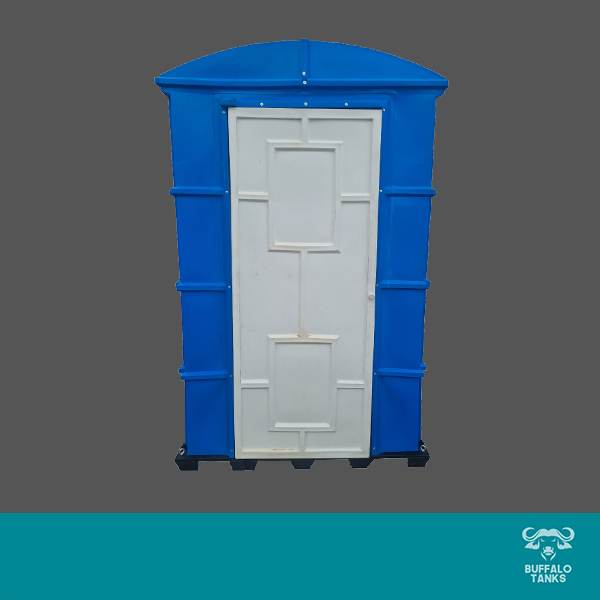

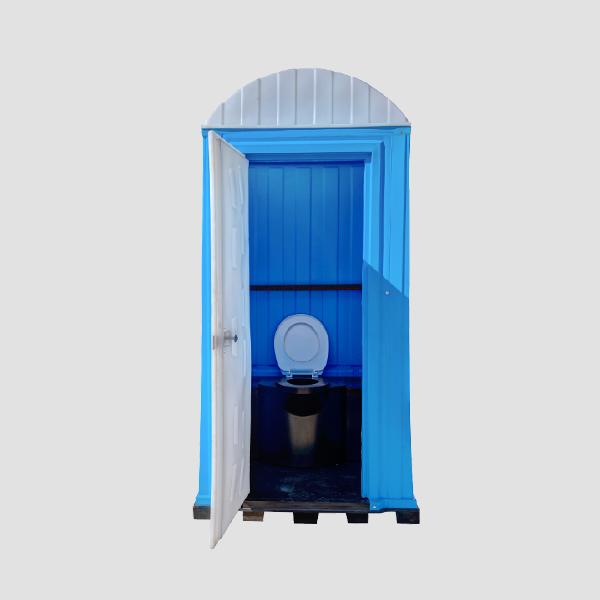

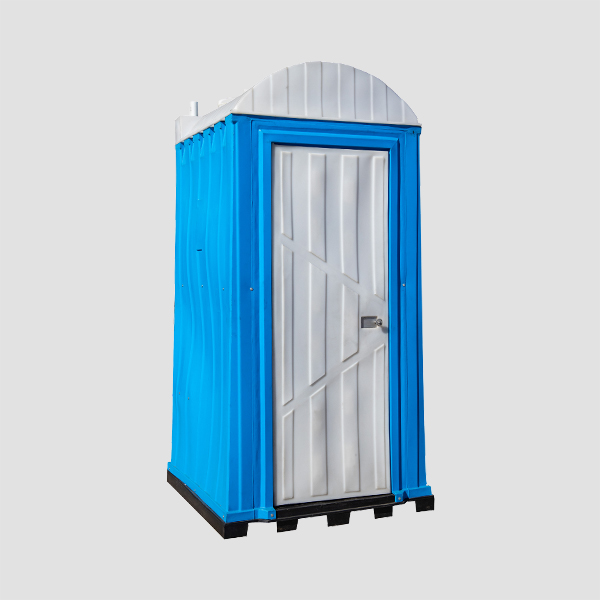

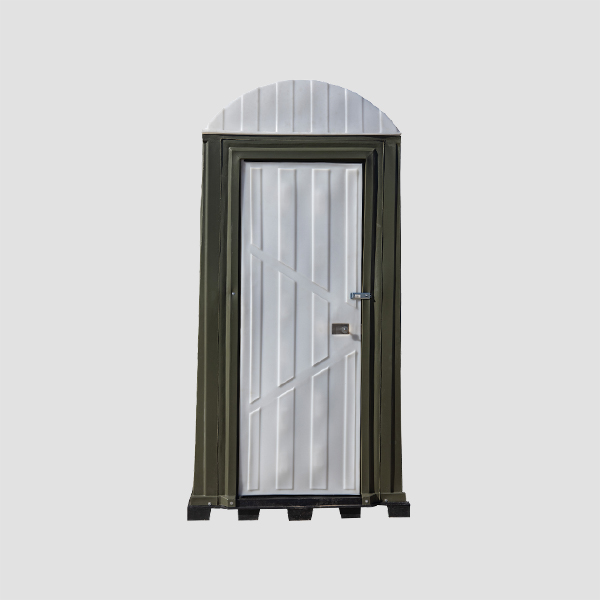

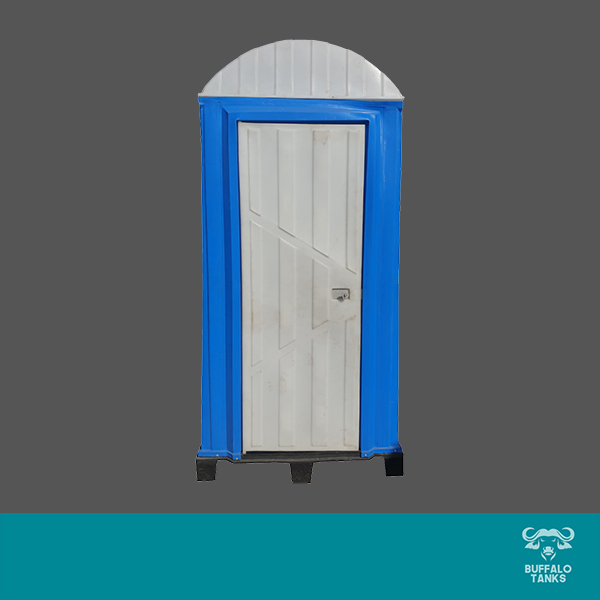

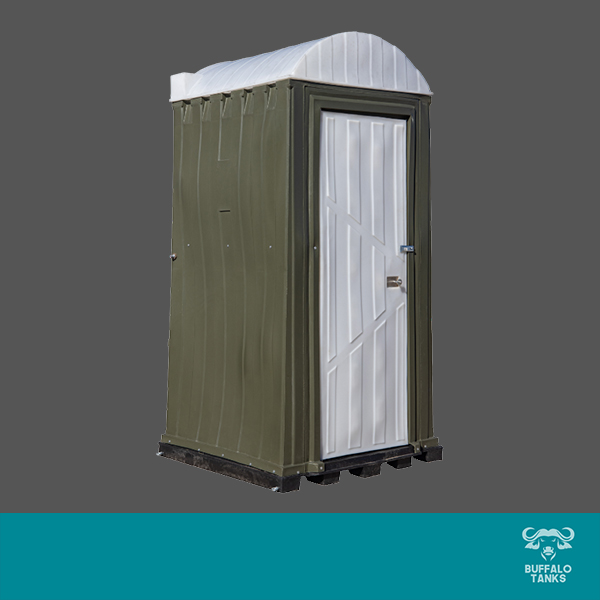

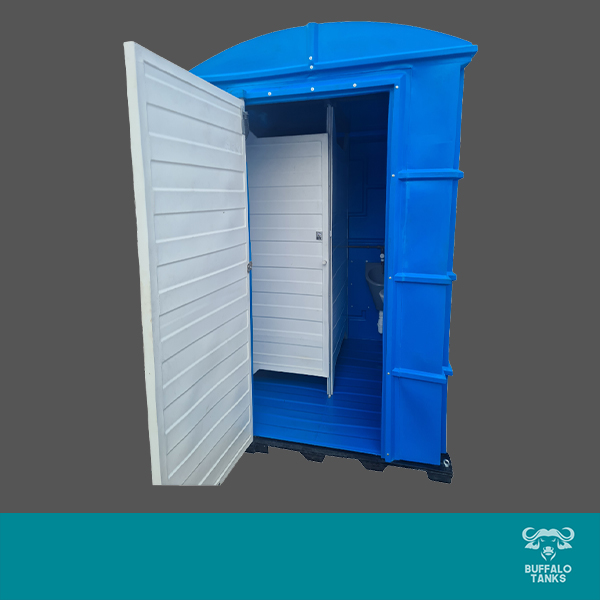

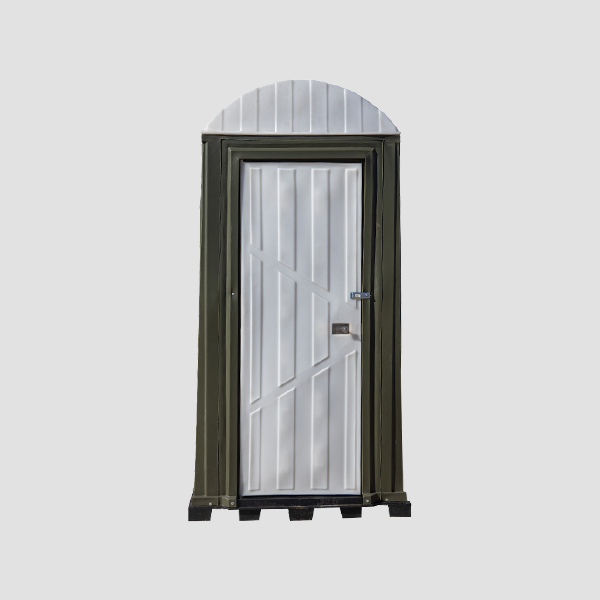

Portable Water-Borne Ablution Facility
NB: Does not include geyser
- It is a well ventilated, waterborne operated ablution facility
- The unit can be hosed out with water and mobbed down.
- The urinal can be connected to a separate tank for collection or straight into a soak-away.
- The hand wash basin wastewater can be collected and re-used to fill the cistern or alternatively drain into the soak-away.

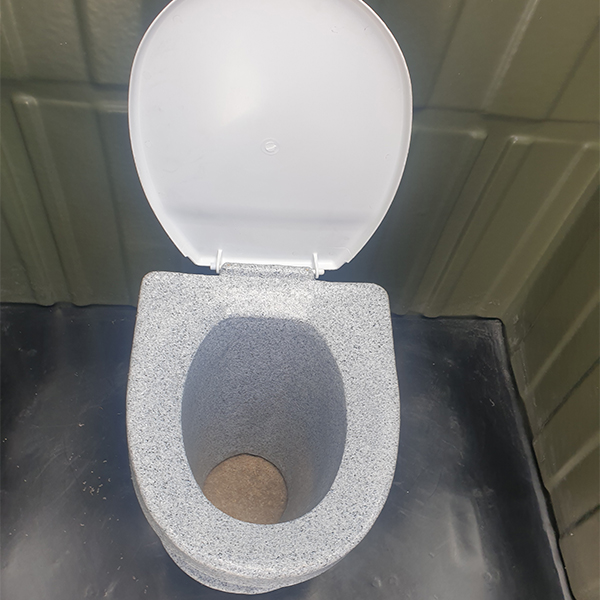

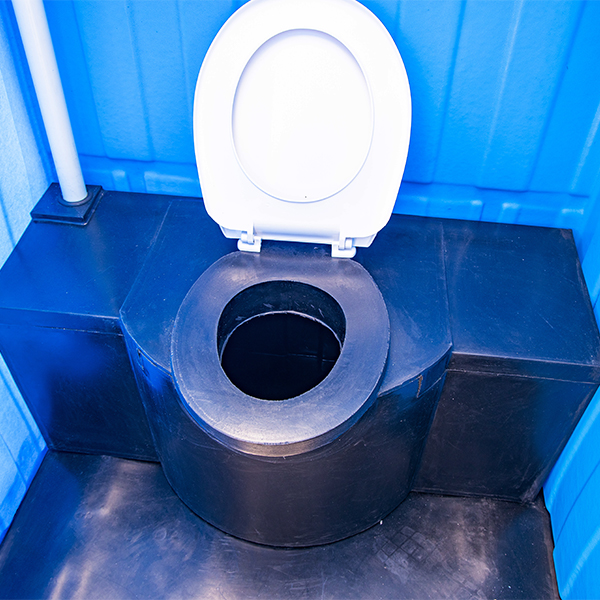

NB: The unit can be retrofitted with 2 X 245L chemical bin seats or 2 X pit toilet pedestals
Application
- Ablution facility for schools, clinics, campsites.
- Ablution for informal settlements.
Technical Specifications
Manufactured from Virgin, UV stabilised LLDPE
Footprint: 1710mm x 1500mm x 2285mm high
Total weight of the unit is 230kg
The unit has a very well ventilated system
The unit is mounted on a plastic palled for easy transport.
The unit has 4 x anker /carry points, one on each corner
The unit is compact, durable, and are available in the following combinations:
Option 1: Male Ablution

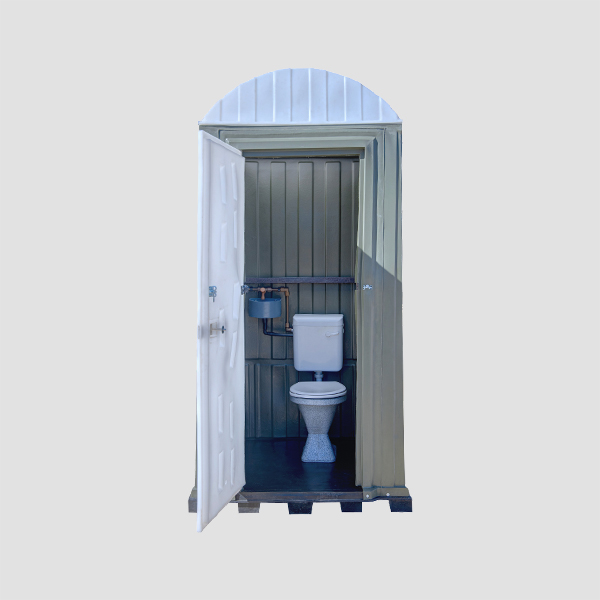

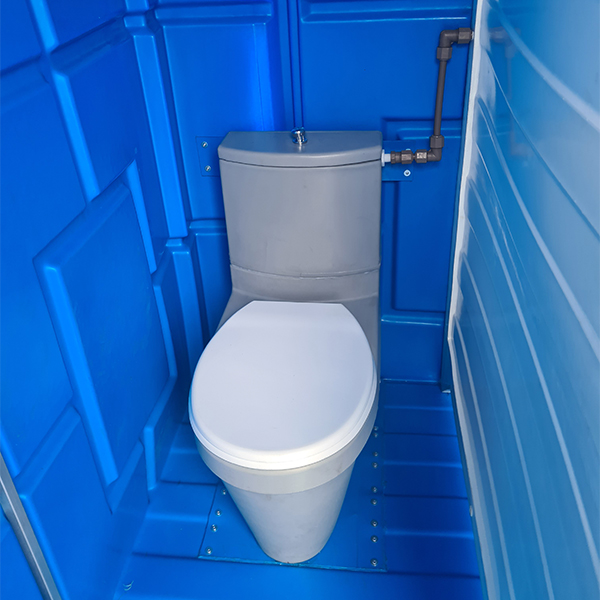

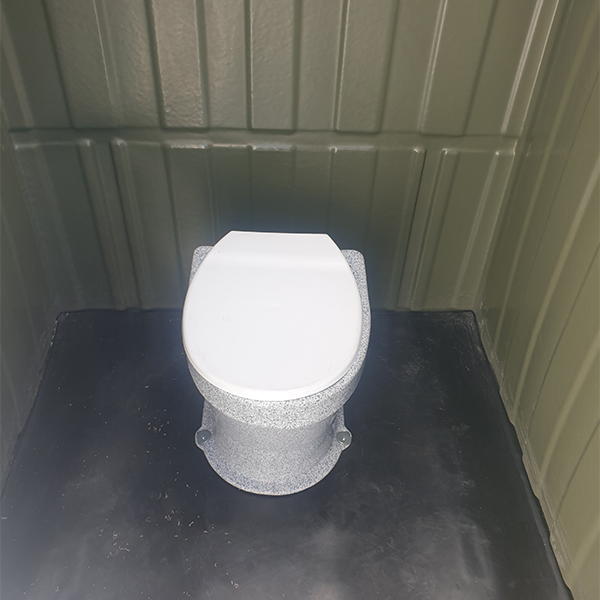

- Water borne flush toilet bowl/cistern Assembly

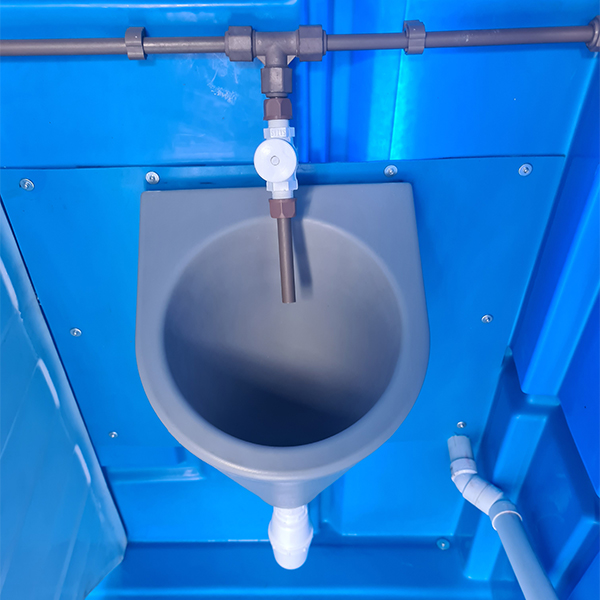

- Urinal

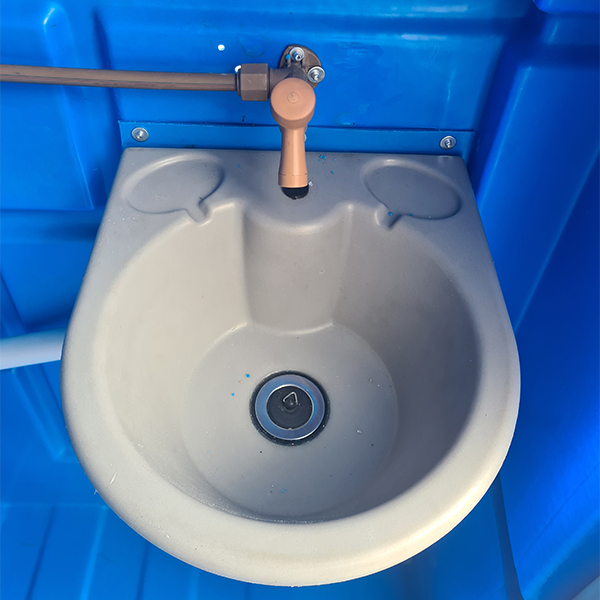

- Hand Wash Basin
Option 2: Female Ablution
- Water borne flush toilet bowl/cistern Assembly x 2
- Hand Wash Basin
Option 3: Shower/Toilet Combination Ablution
NB: Does not include geyser
- Water borne flush toilet bowl/cistern Assembly x 2
- Hand Wash Basin

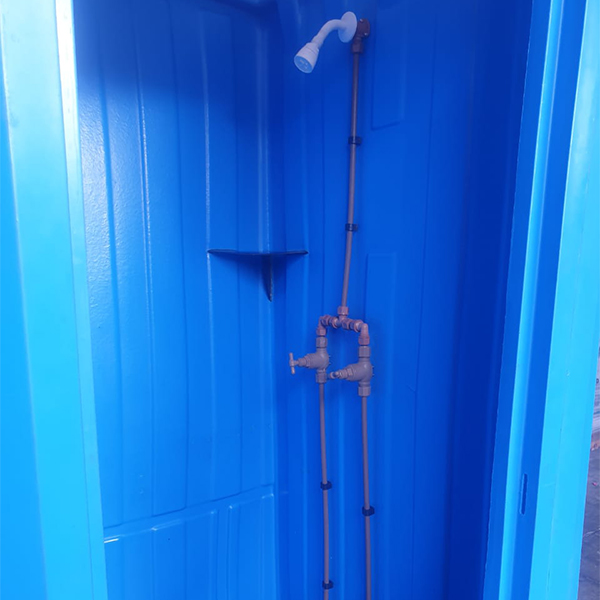

- Shower
